GENERAL |
|
Name |
: |

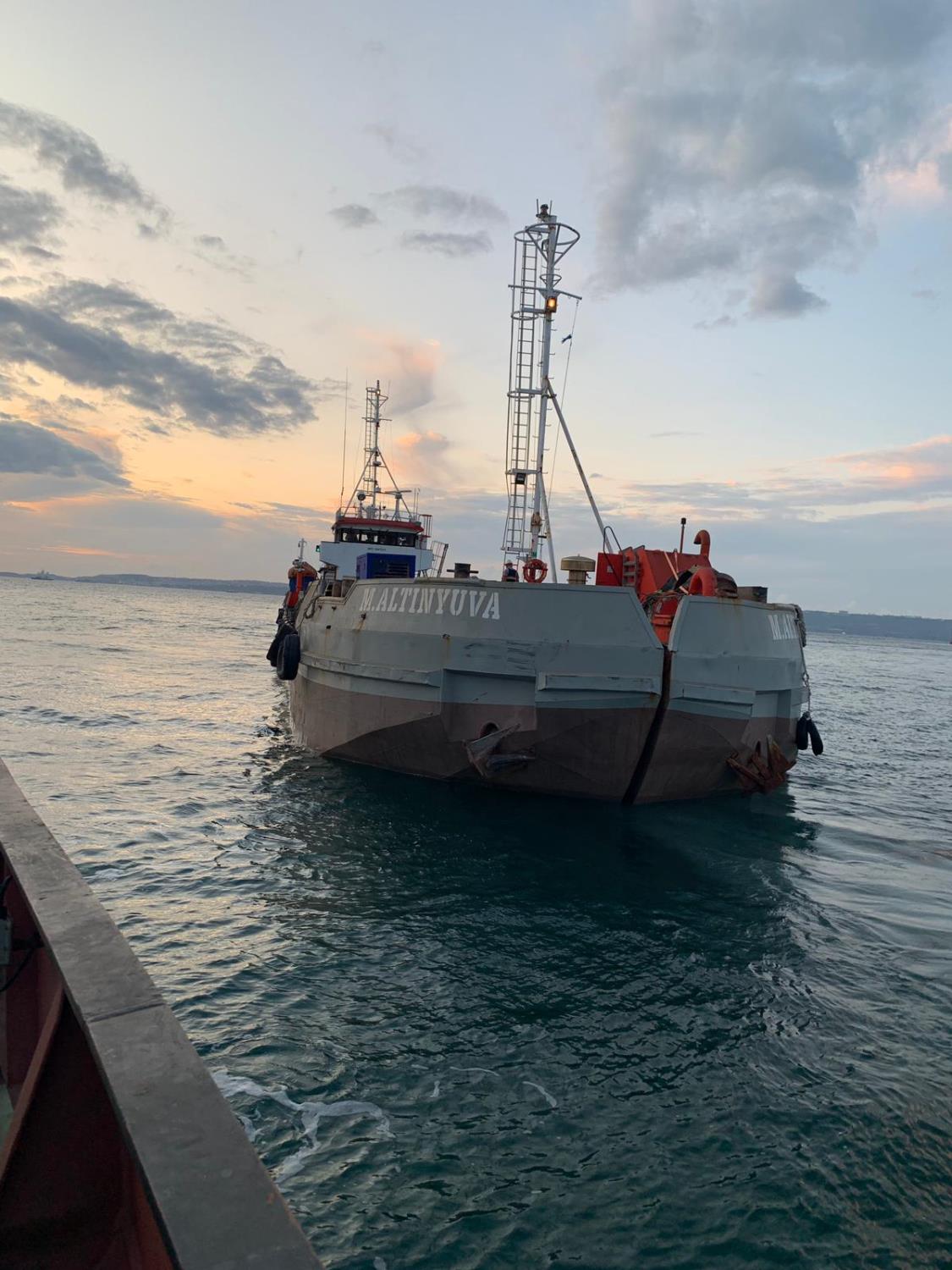

M. Altınyuva |
|
Type |
: |

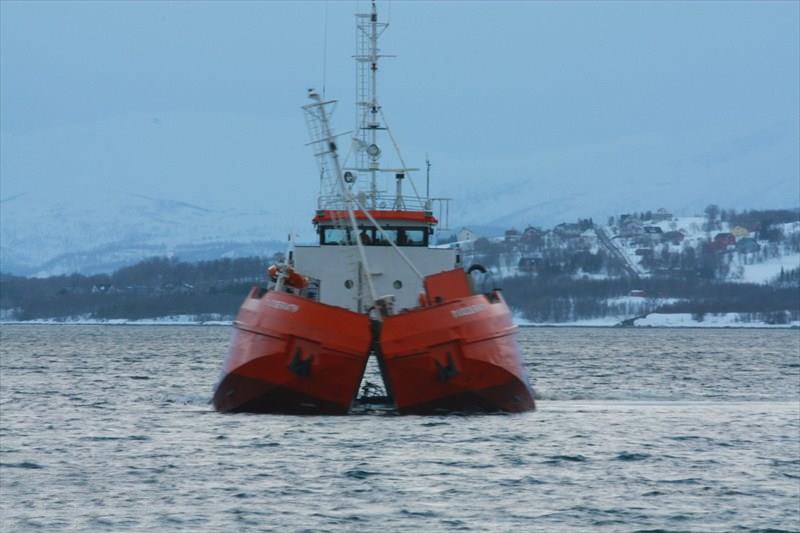

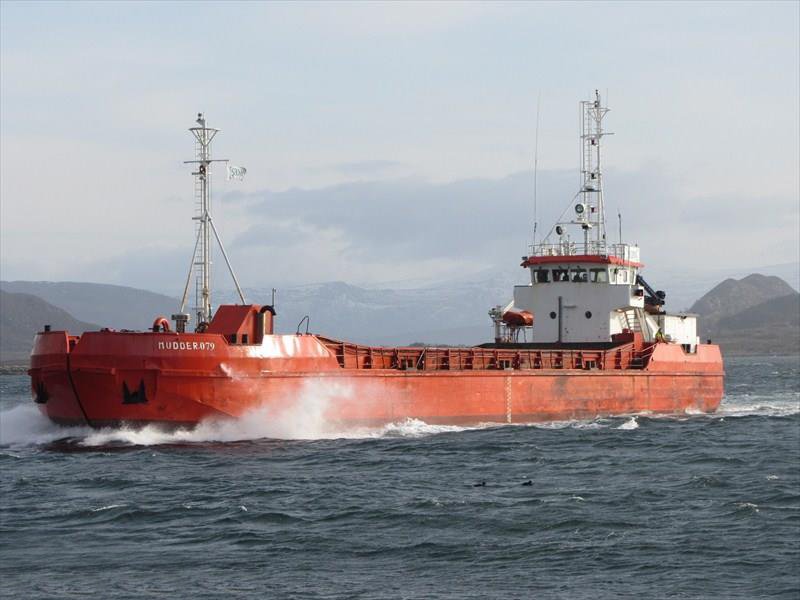

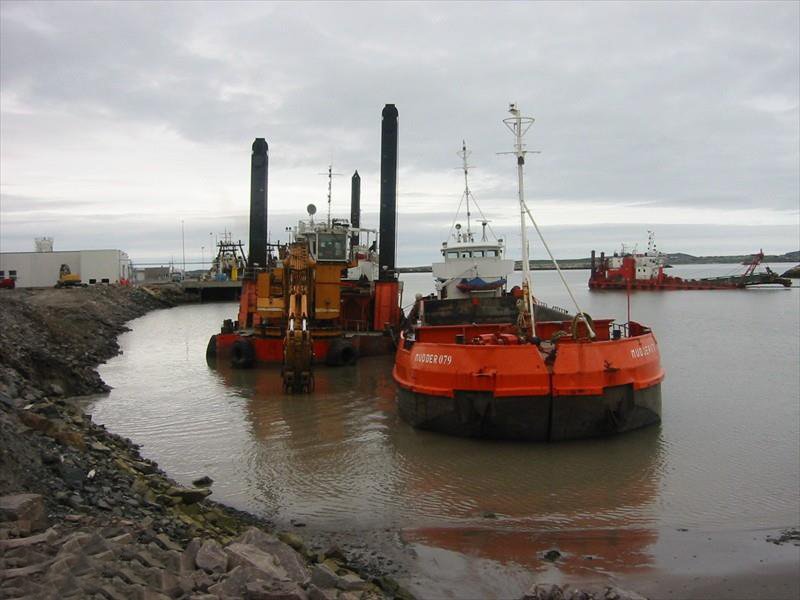

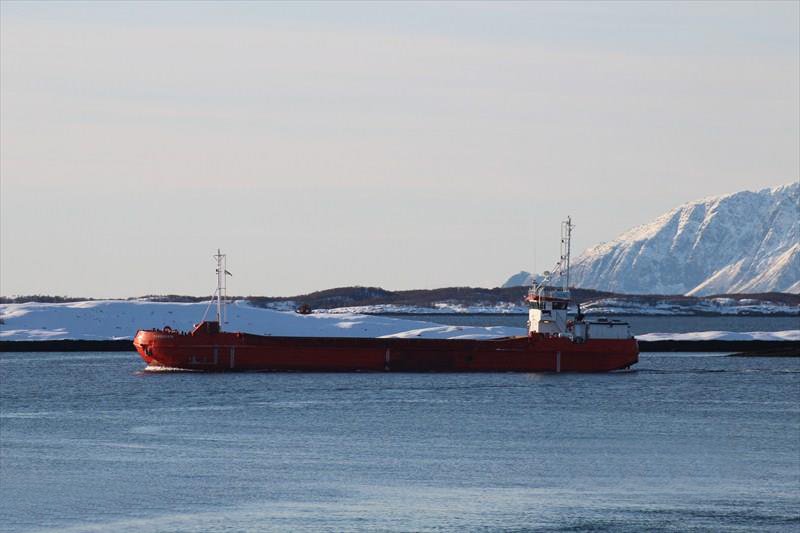

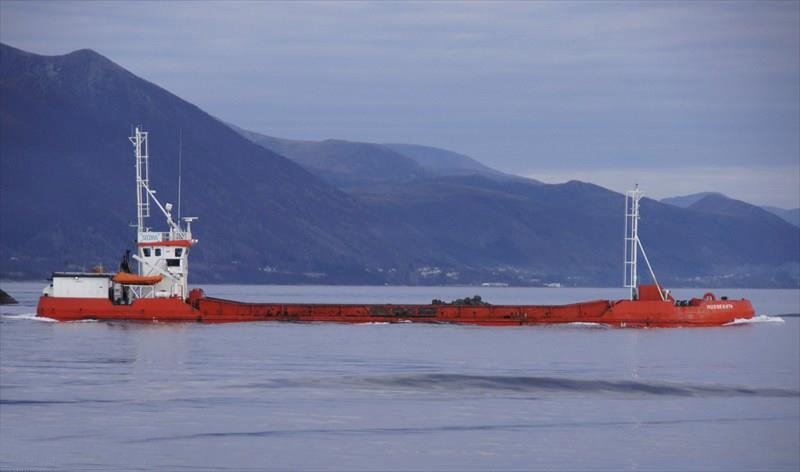

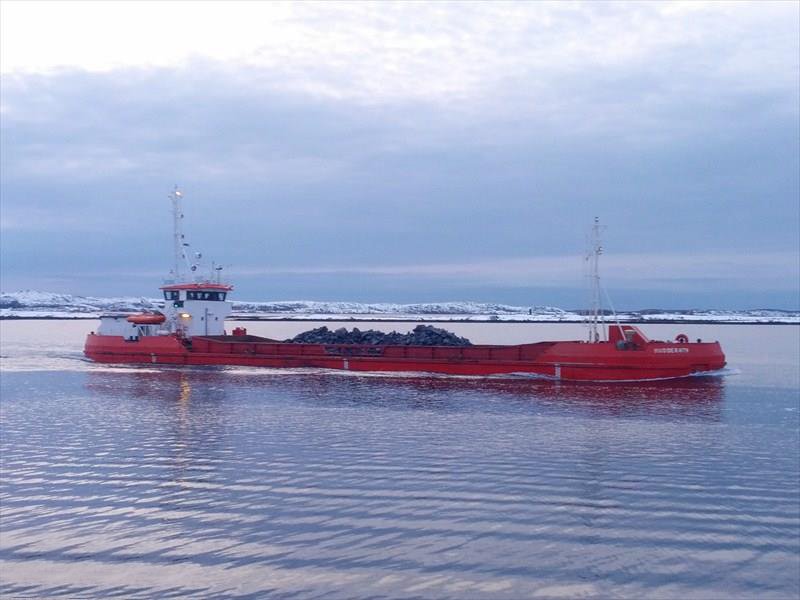

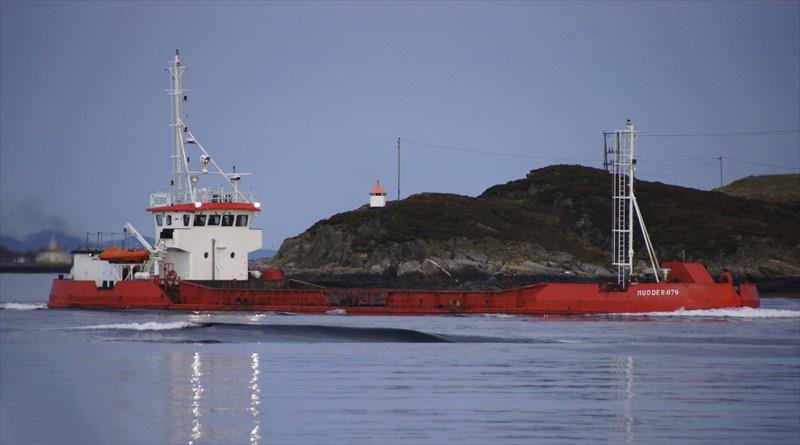

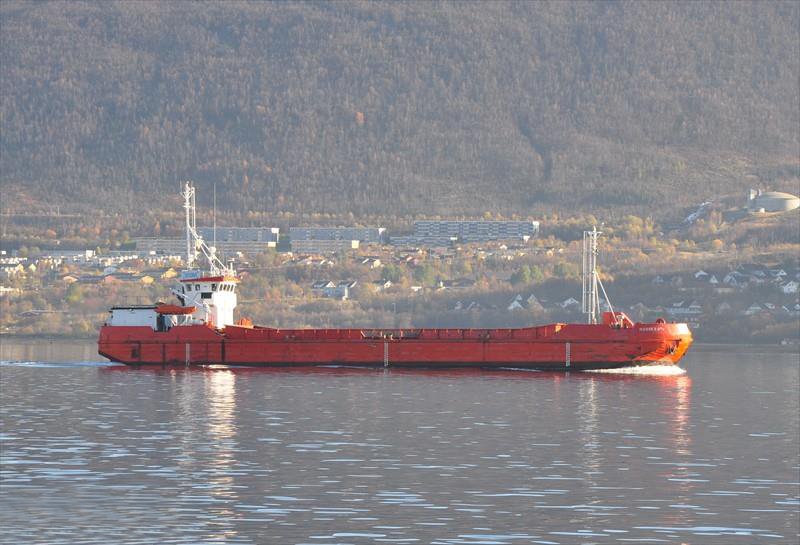

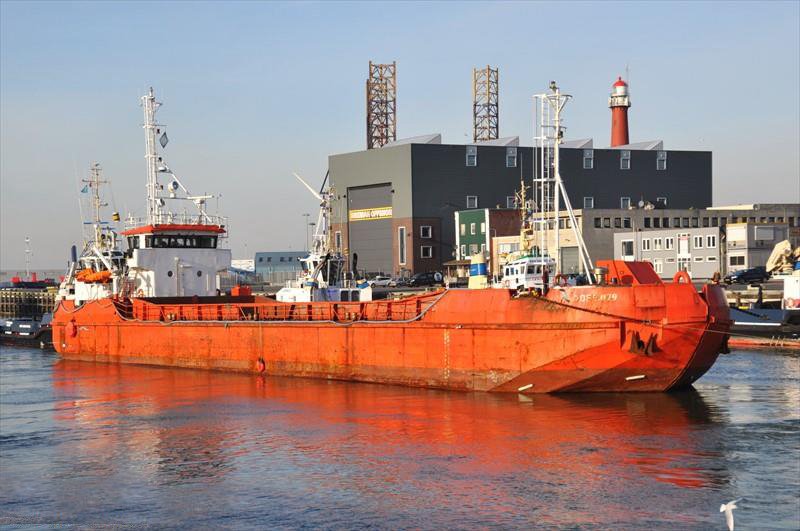

Self Propelled Split Barge |
|
Date and Place Built |
: |
1977 / Romania |
|
Call Sign |
: |
TCA5251 |
|
IMO No |
: |
7647211 |
|
Class |
: |
Phoenix Register of Shipping |
|
P&I |
: |
Turk P&I |
|
Flag |
: |
Turkey |
|
Length |
: |
60.30 m |
|
Breadth |
: |
11.00 m |
|
Depth |
: |
4.00 m |
|
NRT |
: |
321 |
|
DWT |
: |
1373 |
|
Loaded Draft |
: |
3.1 m |
|
Accommodation |
: |
5 Person |
|
Minimum Safe Manning |
: |
3 Person |
|
|
|
|
|
ENGINES & GENERATORS |
|
Total Power of Engines (HP) |
: |
1000 HP |
|
Main Engine |
: |
373*2 kW Cummins KTA 19 M |
|
Propeller Version and Power |
: |
514 HP Deutz BF8M1015 MC 2100 rpm |
|
Generator 1 |
: |
Perkins 48 kW |
|
Generator 2 |
: |
Mitsubishi 59 kW |
|
Consumption per Day |
: |
1.6t @service speed
2.5t @maximum speed
|
|
Total Fuel Capacity |
: |
92.71 m³ |
|
Anchorage |
: |
1 nos 5 tons |
|
Speed |
: |
Service Speed; 6 knots
Maximum Speed; 10 knots
|
|
|
|
|
|
HOPPER HOLD |
|
Volume |
: |
940 m³ |
|
Length of Hold |
: |
34 m |
|
Max. Open Position |
: |
2.0 m |
|
Max. Beam in Open Position |
: |
12.50 m |
|
|
|
|
|
NAVIGATION EQUIPMENT |
|
VHF |
: |
Sperry RT-2048 |
|
AIS |
: |
Furuno FA-150 |
|
Radar |
: |
Furuno RDP-127 |
|
GPS |
: |
Furuno GP90 |
